Cambridge Air Solutions E-Series

THE CAMBRIDGE E-SERIES LINE OF DIRECT EVAPORATIVE COOLING UNITS

Create a comfortable and productive work environment for your employees

Most leaders struggle with finding the balance of providing a cooler work environment for their employees during the summer months and the overall cost of doing so.

The E-Series direct evaporative cooling (DEC) unit is for commercial and industrial applications where it is engineered to provide cool, fresh, conditioned air for your facility. It will create a more comfortable and productive work environment while using up to 70% less energy than conventional mechanical cooling systems.


PERFORMANCE FEATURES

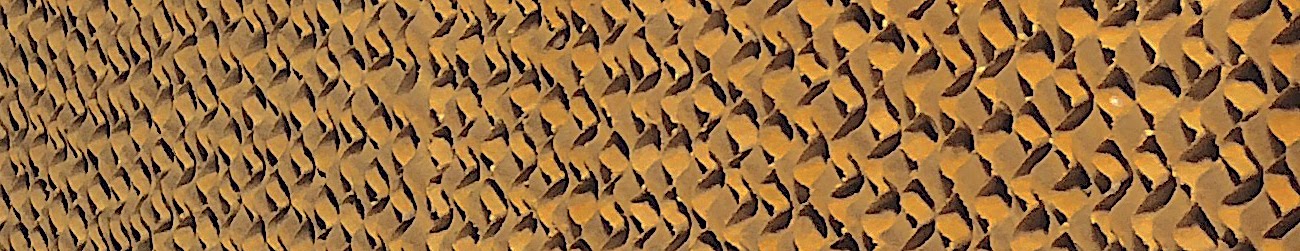

  • Evaporative cooling media is engineered to be self-supporting, impregnated and treated to provide high absorbency
  • 12” media depth will provide saturation efficiency of 88% when operated at 500 feet per minute (fpm) face velocity
  • 2” extruded aluminum frame provides maximum strength and minimal deflection
  • Access doors are provided with hinges and reinforced nylon handles
  • Evaporative section is constructed from single wall 304 stainless steel
  • Sump is constructed from 304 stainless steel and fully welded
  • Premium corrosion-resistant stainless steel cooler pump provides water flow through clog less nozzles

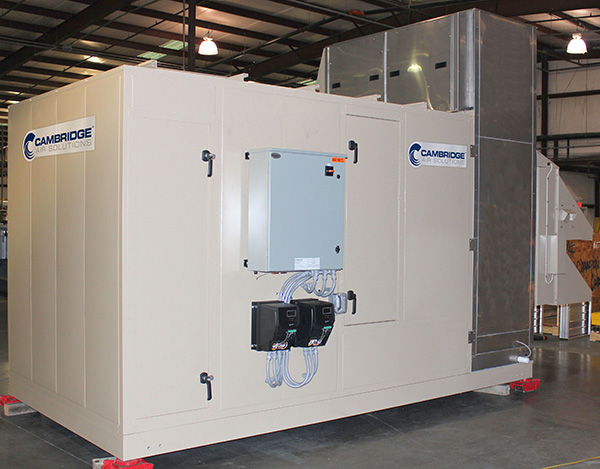

  • NEMA 3R control panel with a through the door non-fused disconnect switch
  • Air is moved by a double width, double inlet forward curve fan which is statically and dynamically balanced on units through size E120 (Backward inclined fan provided on size E160)

Cambridge Air Solutions E-Series                .

BENEFITS FOR ENGINEERS & CONTRACTORS

  • 10 models ranging from 10,000 to 80,000 CFM
  • Up to 2.5” Total Static Pressure
  • Cambridge Factory Start-up
  • Ability to win more projects



BENEFITS FOR BUILDING OWNERS

  • Provides superior IAQ and comfort for employees
  • Energy Efficient VFD controls
  • Reduces carbon footprint

PRODUCT FLYER

Air Solutions Tour

Cambridge's Air Solutions Tours are customized to answer your questions regarding how our technology can help you address your facility's cooling challenges. Do you want to learn more about the commercial and industrial uses of our evaporative cooling technology or the E-Series direct evaporative cooling unit? Schedule an in-person or virtual tour today! For more information about our Air Solutions Tours, reach out to our Sales Development Representative via chat or phone.

Learn More


CAMBRIDGE E-SERIES DIRECT EVAPORATIVE MODEL NUMBERS

E30: 10K – 16K CFM | E36: 14K – 20K CFM | E42: 17K – 23K CFM | E48: 20K – 26K CFM | E60: 24K – 33K CFM

E72: 26K – 40K CFM | E84: 31K – 46K CFM | E96: 37K – 53K CFM | E120: 50K – 65K CFM | E160: 60K – 80K CFM


SPECIFICATIONS - BASE UNIT

AIRFLOW RANGES: 10,000 - 80,000 CFM (see above for Cambridge model numbers)

MOUNTING: Outdoor Only • Roof Top • Pad Mount

DISCHARGE: • Down Blast • Up Blast • Horizontal Blast

VOLTAGE: • 460/3/60 • 230/3/60 • 208/3/60

CASING/FINISHING: • Single Wall Galvanized • Powder coat, 1000 hour salt spray

EVAP SECTION PAINT: Unpainted Stainless


AVAILABLE OPTIONS / ACCESSORIES

INTAKE: Screen, Louver, Hood
FILTERS: None, 1” Aluminum, 2” Aluminum, 2” MERV 8
MOTOR TYPE: ODP, TEFC
VFD
FILL & DRAIN KIT
MEDIA:
12” CELdek, 12” GLASdek
CASING / FINISH: Single Wall Stainless Steel, Double Wall Galvanized, Double Wall Stainless Steel
PIPING: PVC, Copper
REDUNDANT PUMP
2-POSITION INLET DAMPER
REMOTE CONTROL PANEL:
Programmable Room Thermostat
CURB: Flat 14”, Flat 24”
RAILS / STANDS: 14" and 24"
INSULATION: 2” Thick, 2.8# Density Mineral Wool Insulation To Provide R8 Insulating Factor (Insulation Directly In The Airstream Is Not Acceptable)
